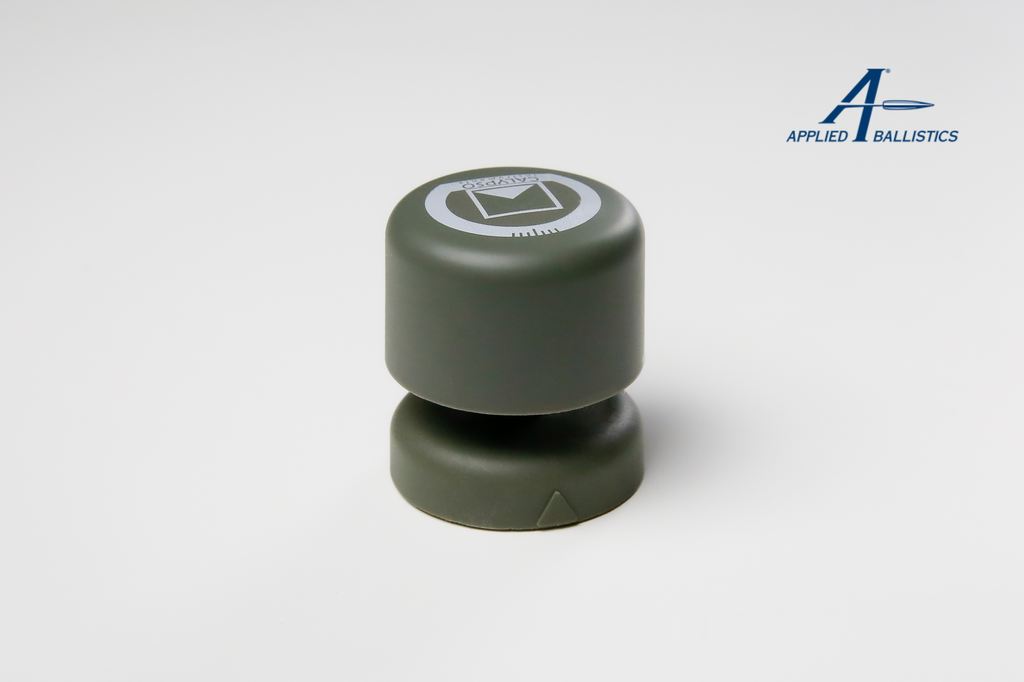

Applied Ballistics compatible, pocket-sized ultrasonic wind meter.
Wind speed and direction, live or logged. Four ultrasonic transducers and no moving parts keep it robust and dependable. At 43 mm and 78 g, in field green, it rides in a pocket and sets up anywhere on the line.
Built for the shot.
Reads 0.5 to 45 m/s (1.12 to 100 mph) at 1 Hz. Thread it onto any standard tripod with the 1/4" mount, or add the aiming sight (CMI1049), mast mount (CMI1028) or phone mount (CMI1023).
Wireless, start to finish.
Qi wireless charging. Up to 150 hours of active use per charge. Bluetooth Low Energy connects it to your phone, tablet, Garmin watch or Applied Ballistics compatible device. IPX8 rated. Firmware updates over Bluetooth through the Applied Ballistics Quantum App.
Nominated for the DAME Design Awards 2021. The DAME Awards recognize the best designed products at the METSTRADE Show.
Certifications
Free AnemoTracker App.
Four modes: Marine, Golf, Meteo and Ballistics.
- Apparent wind speed and direction
- Real wind speed and direction on a vehicle or boat
- Data logging with export to Excel or Google Earth
- Adjustable wind direction damping
- Graphs with means and deviations
- Units: m/s, km/h, knots, mph
- Threshold alarm, direction offset, map mode and more
Download it for Garmin Connect IQ
Package contents.
- Ultrasonic Portable Mini AB wind meter
- Qi wireless charger
- Travel pouch
- Serial number on the packaging
- User guide at calypsoinstruments.com, linked by QR code on the packaging
SKU: CMI1061. Ultrasonic Portable Mini AB is a proprietary solution and is not open source.
