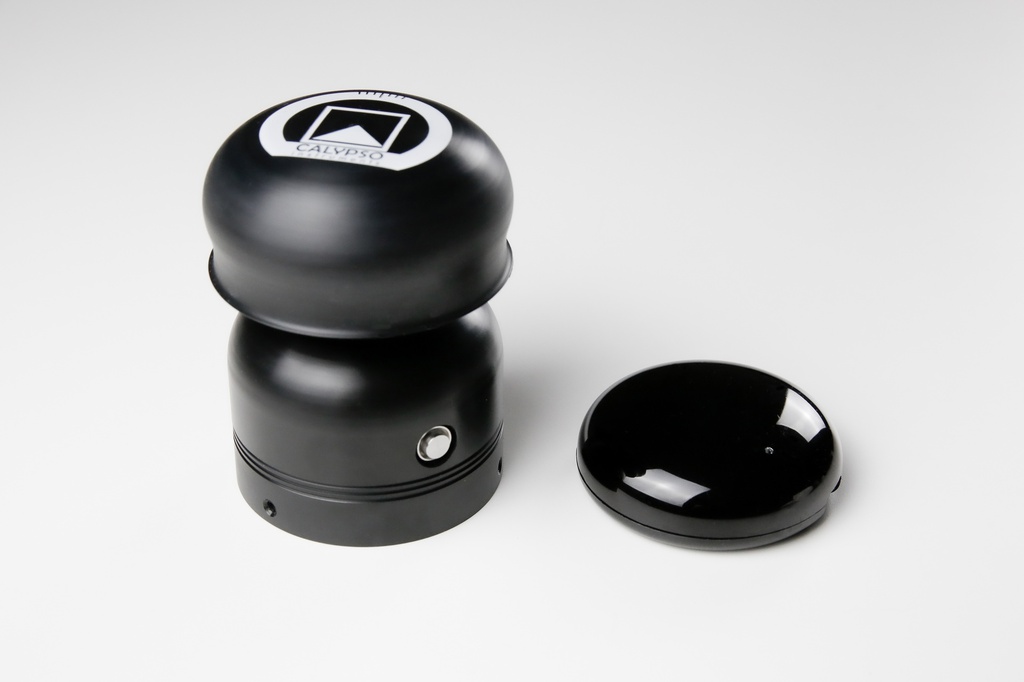

Ultrasonic wind meter LORA + RECEIVER

https://www.calypsoinstruments.com/web/image/product.template/538/image_1920?unique=7104e5b

Ultra Low Power-Ultrasonic wind meter

925.00 € 925.0 EUR 925.00 €

925.00 €

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 3-5 Business Days
    Free Shipping beyond 300$ (Not eligible when a discount is applied)



    This combination does not exist.


    Ultra-Low-Power Ultrasonic wind meter.

    The Ultra Low Power LoRa Instrument is a wireless, Bluetooth Low Energy (BLE) and battery-powered, compact ultrasonic anemometer, easy to install, simple to use and compatible with IOS, Android and Garmin watches. This wind meter allows you to get Wind Speed & Direction up to 1,86 miles (3 Km).

    The ULP LoRa product was developed to meet the need for a device that can be placed in remote locations without requiring specific infrastructure, enabling data to be received from several kilometers away. This means the anemometer can be installed at a desired location, with data being received remotely “over the air” through a small receiver device that adapts the output format to the client’s preferred configuration. Various markets and situations would find the ULP LoRa particularly beneficial

     It's size makes it an ideal stand-alone wind meter of great value on a wide range of industries and applications.

    Simple mount

    The Ultra Low Power LoRa has a femalethread (1/4") perfect ot be mounted on any tripod

    Wireless and Battery Powered

    Wireless Charging QI- thanks to its Bluetooth connection, the ULP LoRa can be recahrges on a wireless charged on a wireless charged pad connected via USB to the power.


    Applications:

    Maritime sector:  wind recording at multiple coastal points

    Golf: measure speed and direction across different area simultaneously

    Ballistics: Long Range Shooting

    Wind Energy Sector : Assesment viability of a wind farm


    Get Anemotracker app for free!

    Despite  the multiple apps available, we do provide a free app: Anemotracker. It will allow you to get wind speed and direction from your ULP LoRa. You can also save your wind meter data when tracking.

    It includes 4 different modes : Marine, Golf, Meteo and Ballistics.

    It will provide you with :

    • Apparent wind speed and direction.
    • Real wind speed and direction (if used on a vehicle or boat).
    • Tracking of your wind data and exportation via excel or Google Earth.
    • Available upgrade to the latest firmware version from the App-This new add-on will let the user to upgrade the Ultrasonic Portable to  the latest firmware version from Anemotracker app.
    • Wind direction adjustable damping.
    • Velocity Made Good calculations.
    •  New derived data: stylish graphs with Means and deviations.
    • Configuration from the units of measure: m/s, km/h, Kt.
    •  Threshold alarm, direction offset, map mode, etc...


     Download it for IOS

     Download it for Android

     Download it for Garmin Connect IQ



    Internal Reference Code: CMI1068



    Material
    Nylon polymer


    Dimensions
    Diameter : 70mm (2.76 in.)
    Height : 95mm (3.74in.)
    Weight : 213 grams (7.1 oz.)

    Wind Speed
    Range : 0.5-25 m/s (1.12 -56mph)
    Accuracy : ±0.3 m/s at 10 m/s (0.22 mph at 22 mph
    Threshold: 0.5 m/s (1.12 mph)

    Wind Direction
    Range : 0-359º
    Accuracy : ± 1


    Wind Information

    speed & direction


    Sensors
          Ultrasonic transducers (4x)

    Sample rate
           1Hz

    Power

    ULP LORA
    3.3- 5DCV
    Battery powered (Wireless charging QI)
    Receiver
    Lythium polymer battery
    USB-C charging


    Battery runtime
    50 hours Active use Battery (Same batery runtime for the ULP LoRa and the receiver)
    Data Output
    ULP LoRa:
    LoRa P2P (up to 3km direct line of sight). Our device is available for LoRa frequencies 868 and 915 MHz being added in the future.

    Receiver:
    LoRa P2P (up to 3 km direct line of sight), Bluetooth Low Energy 5.1 (up to 30 m direct line of sight)

    Bluetooth Range
    Version 5.1 or beyond

    Firmware
    Upgradable. via Bluetooth


    IP Code
    ULP LoRa: IPX8 protection grade
    Receiver: IP 65

    Mount
    3xM3 base female  tripod thread
    3xM4 lateral female thread UNC1/4"-20
    3XM4 inferior female tripod thread-UNC1/4"-20


    Data Output
    Bluetooth
