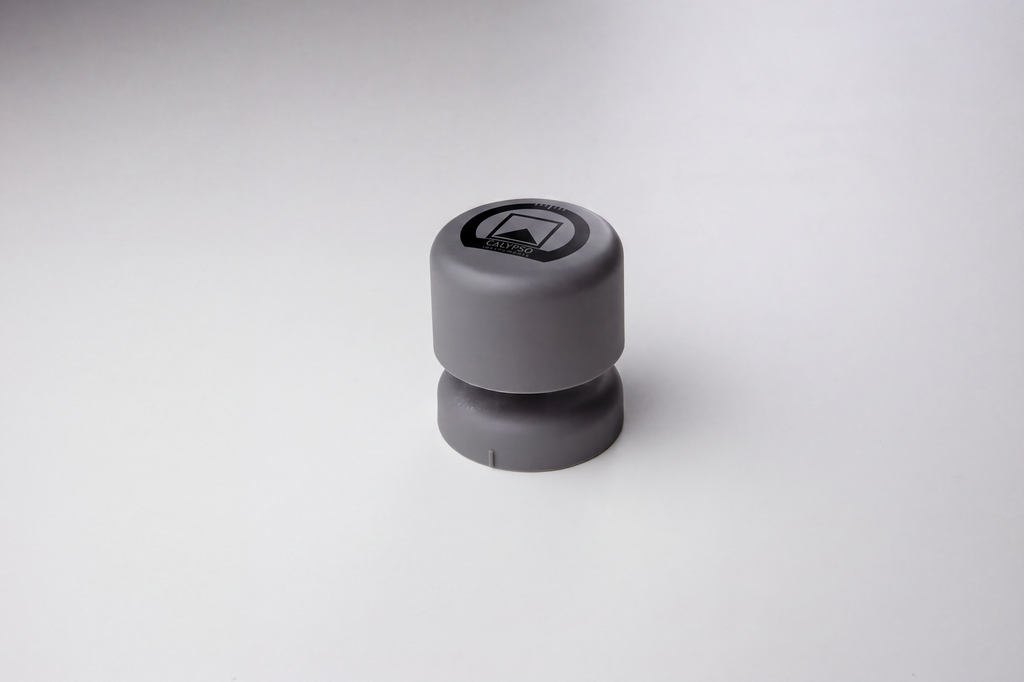

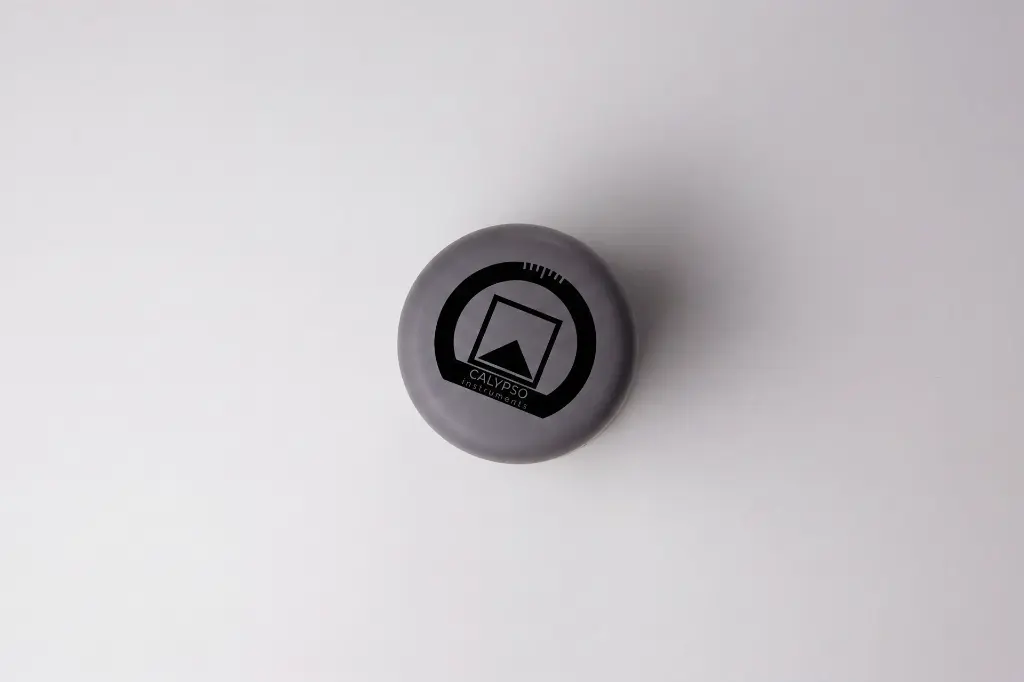

Ultrasonic Portable Mini Ballistics Wind Meter

https://www.calypsoinstruments.com/web/image/product.template/776/image_1920?unique=2f0383f

Pocket-sized ultrasonic wind meter for long range. 43 mm, 78 g, Bluetooth, no moving parts.

US$ 449.00 449.0 USD US$ 449.00

0.00 €

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 3-5 Business Days
    Free Shipping beyond 300$ (Not eligible when a discount is applied)
    Ultrasonic Portable Mini AB is a proprietary solution and is not open source
    ​

    This combination does not exist.


              Pocket-sized ultrasonic wind meter for long range.

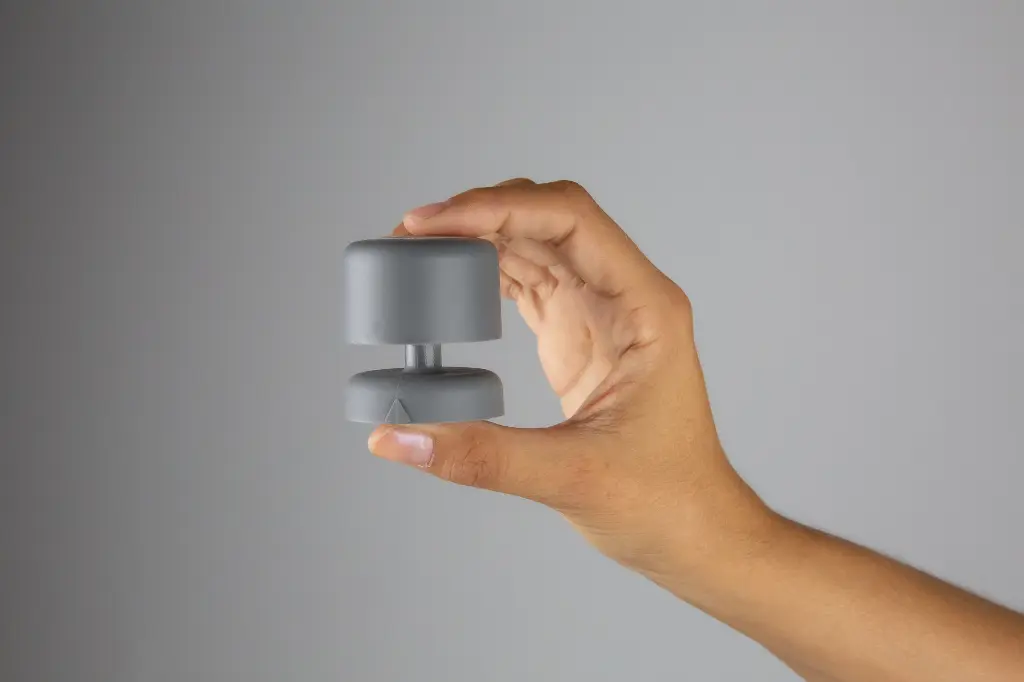

              Wind speed and direction, live or logged. Four ultrasonic transducers and no moving parts keep it robust and dependable. At 43 mm and 78 g it rides in a pocket and sets up anywhere on the line.

              Built for the shot.

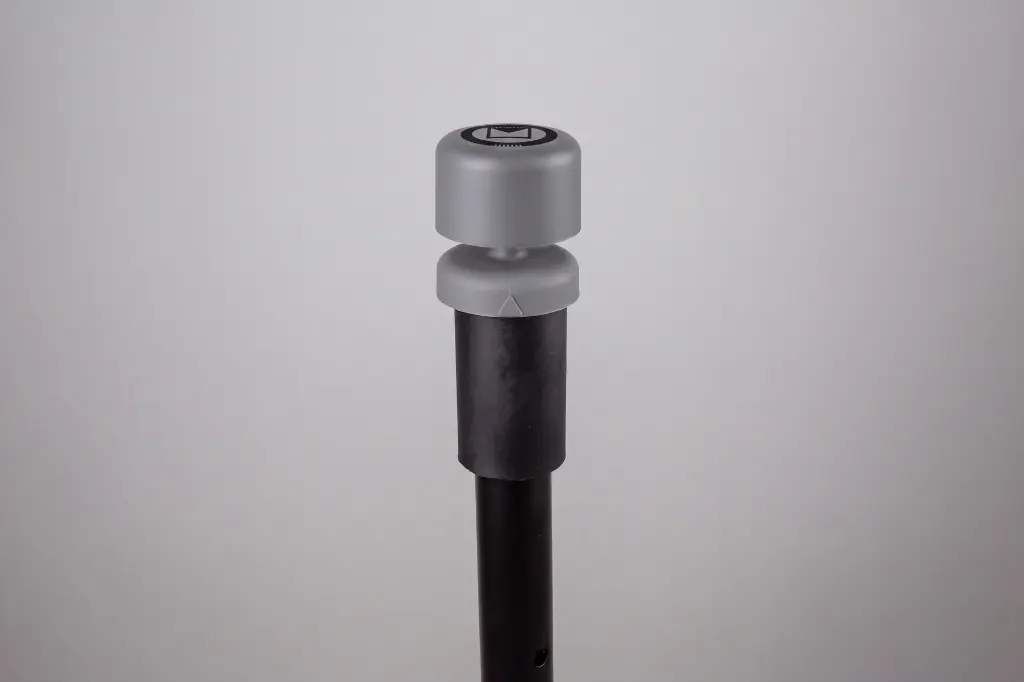

              Reads 0.5 to 45 m/s (1.12 to 100 mph) at 1 Hz. Thread it onto any standard tripod with the 1/4" mount, or add the mast mount (CMI1028) or phone mount (CMI1023).

              Wireless, start to finish.

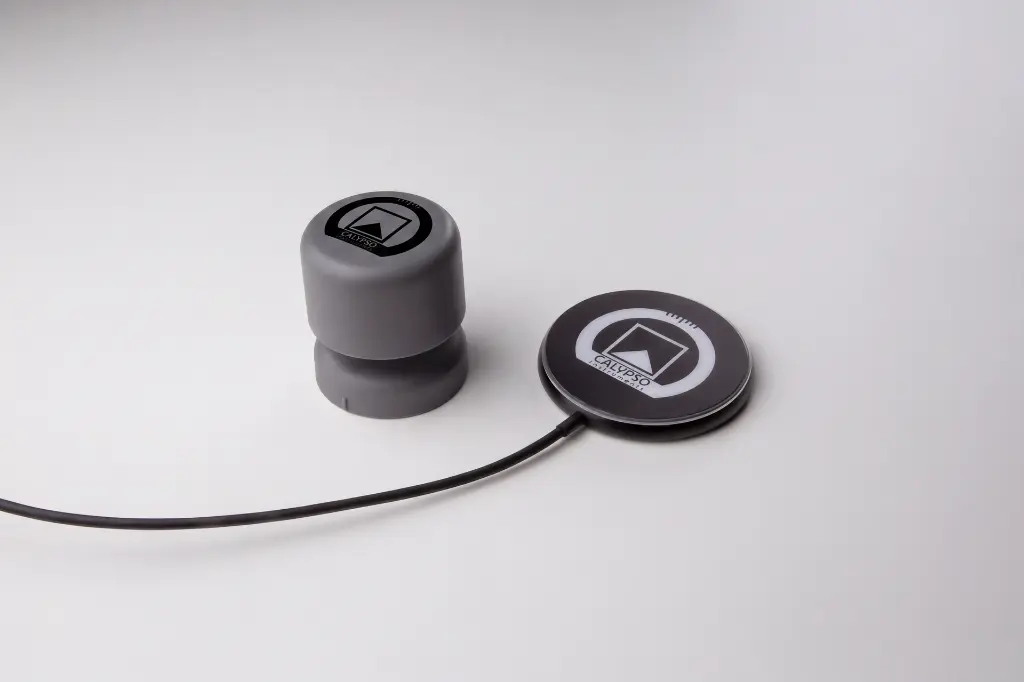

              Qi wireless charging in about an hour. Up to 300 hours of active use per charge. Bluetooth Low Energy, no data wires. IPX8 rated.

              Certifications



              Compatible with the free Calypso Ballistics App.

              Available for iOS and Android. Pair the Mini Ballistics over Bluetooth for live wind, logged with every session. Add a WeatherDot Ballistics and the app computes air density from its temperature, humidity and pressure.

               Download it for IOS

               Download it for Android

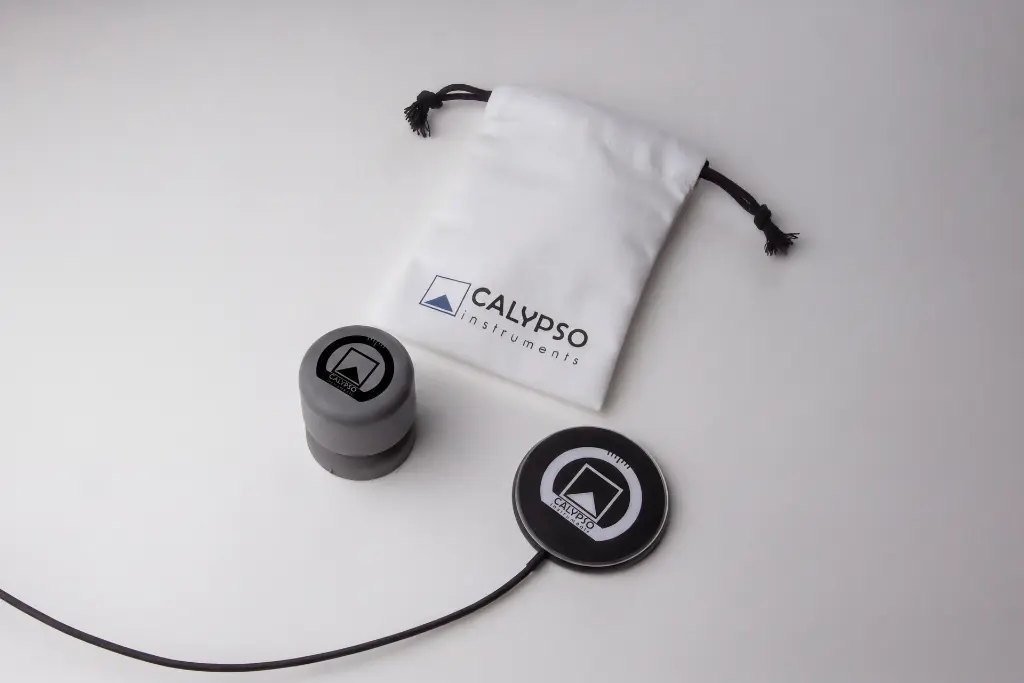

              What’s in the box.

              • Ultrasonic Portable Mini Ballistics
              • Qi wireless charger plus USB cable
              • Travel pouch
              • Serial number on the packaging
              • User guide at ballisticswindmeters.com, linked by QR code on the packaging


              Product Reference

              SKU/CMI product number: CMI1085.


              CategorySpecValue
              MaterialHousingInjected engineering plastic (grey)
              DimensionsDiameter43 mm (1.69 in.)
              Height47 mm (1.85 in.)
              Weight78 g (2.75 oz.)
              Wind SpeedRange0.5 to 45 m/s (1.12 to 100 mph)
              Accuracy0.3 m/s or 3 % at 0 to 16 m/s (0 to 35.8 mph)
              5 % at 16 to 45 m/s (35.8 to 100 mph)
              Resolution0.01 m/s (0.0224 mph)
              Wind DirectionRange0 to 359°
              Accuracy3° at 1 to 5 m/s (2.24 to 11.2 mph)
              1° at 5 to 16 m/s (11.2 to 35.8 mph)
              6° at 16 to 45 m/s (35.8 to 100 mph)
              Resolution1°
              Wind DataOutputApparent and real wind speed and direction via App
              SensorsTypeUltrasonic transducers (4x), no moving parts
              Sample RateRate1 Hz
              Configurable UnitsWindm/s, km/h, knots, mph
              Data OutputBluetoothBLE 5.1 or beyond
              RangeUp to 30 m (98 ft) in open space
              FirmwareUpdatesUpgradable via Bluetooth
              PowerTypeBattery powered

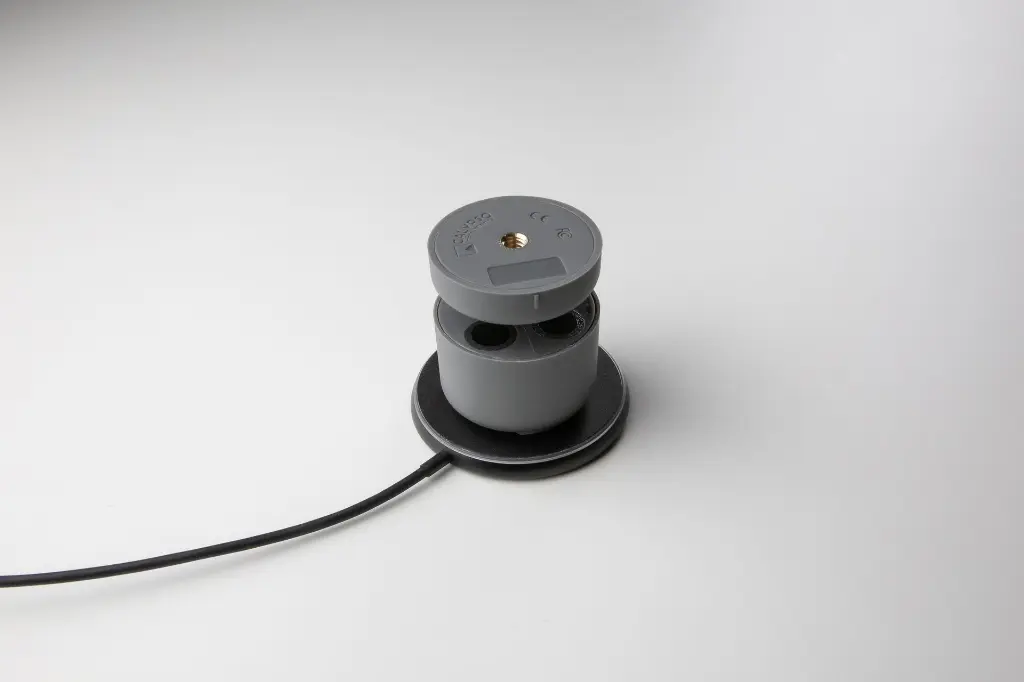

              ChargingQi wireless (charge upside down), approx. 1 hour
              Battery life (active use)Up to 300 hours
              Battery life (standby)2,000 hours
              MountThread1/4" female thread (tripod standard)

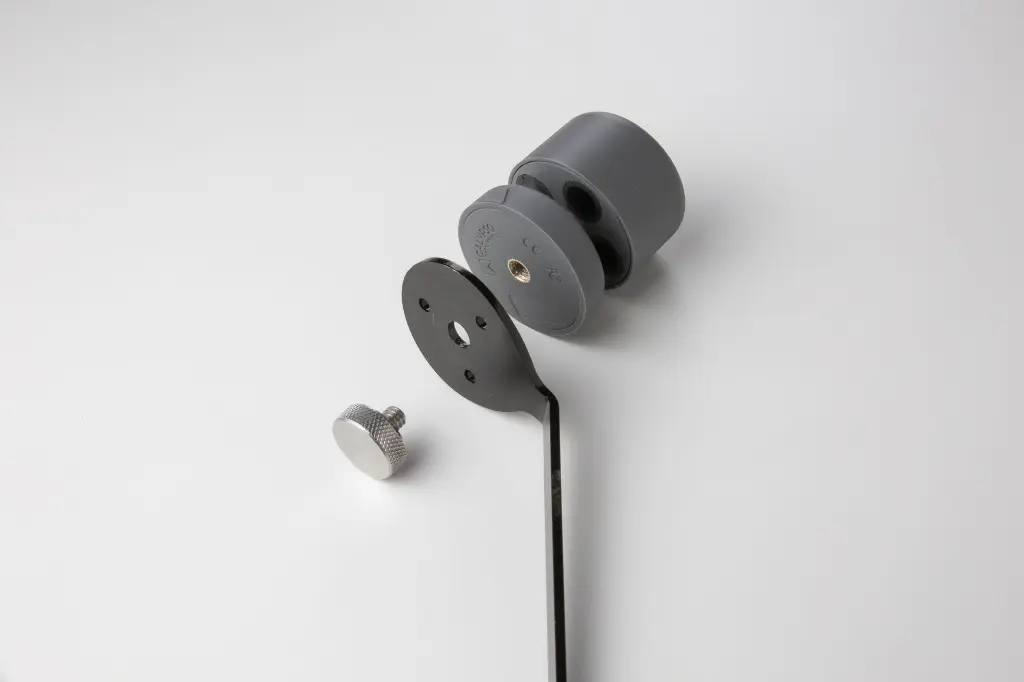

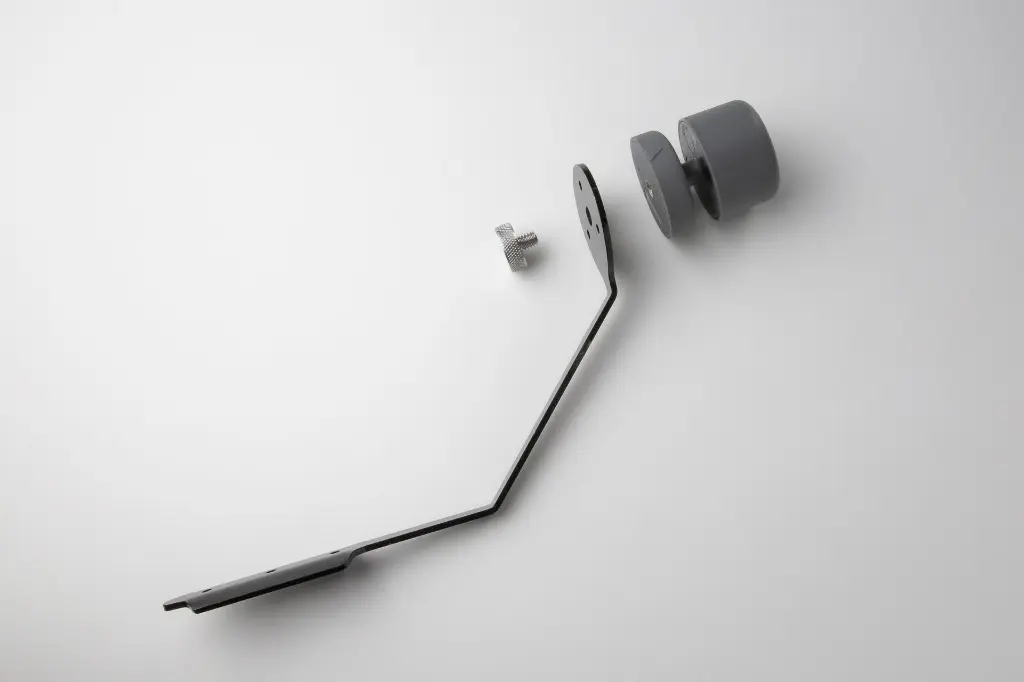

              Mast mountCMI1028
              Phone mountCMI1023
              EnvironmentalProtectionIPX8
              Operating temperature-15 to 60 °C (5 to 140 °F), no frost
              Operating humidity0 to 100 % RH
              App CompatibilityAppCalypso Ballistics App (iOS and Android)
